Spares for 40HP & 60HP NFLP Drum Controller 550V 150AMPS Rated
| SL NO. | PART NO | DESCRIPTION | DRAWING NO | VIEW DRAWING |
|---|---|---|---|---|
| 78. | PSE 1 | M.S. MOVING BAR WITH SRBP BACKLITE SQ. TUBE. | DC/PSE2/03/22 |
 |
| 79. | PSE 2 | M.S. FIXED BAR WITH SRBP BACKLITE SQ. TUBE. | DC/PSE2/03/22 |
|

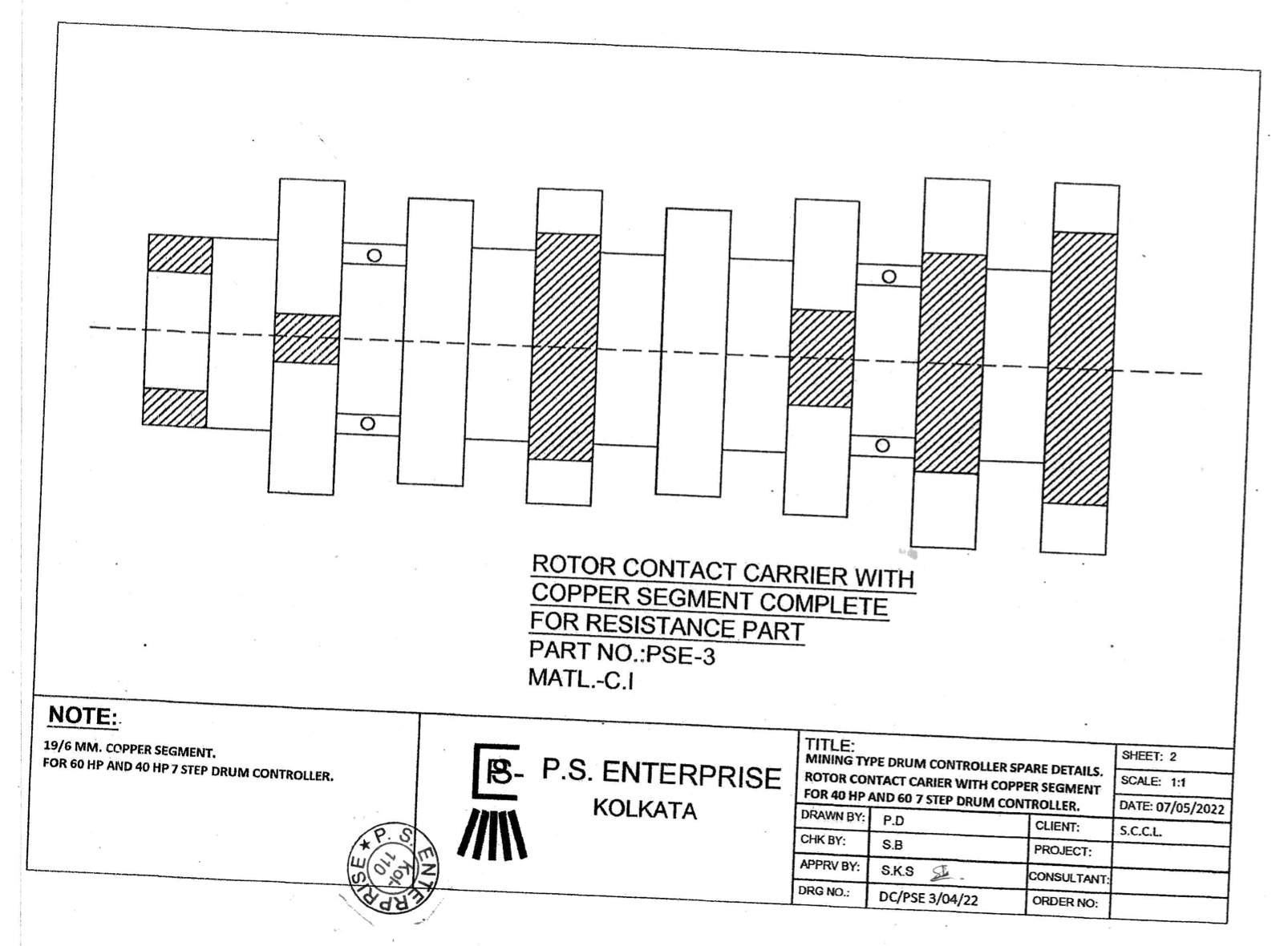

| 80. | PSE 3 | ROTOR CONTACT CARRIER WITH COPPER
SEGMENT (19X6) mm COMPLETE FOR RESISTANCE PART. |
DC/PSE3/04/22 |
 |
| 81. | PSE 4 |
STATOR CONTACT CARRIER WITH (19X6) mm COPPER TAPE COMPLETE FOR MOTOR PART. |
DC/PSE4/05/22 |
 |
| 82. | PSE 05 | AUXILIARY CONTACT WITH COPPER TAPE
( 12 X 6 )mm FOR OPI & BLINKER. |
DC/PSE05/07/22 |
 |

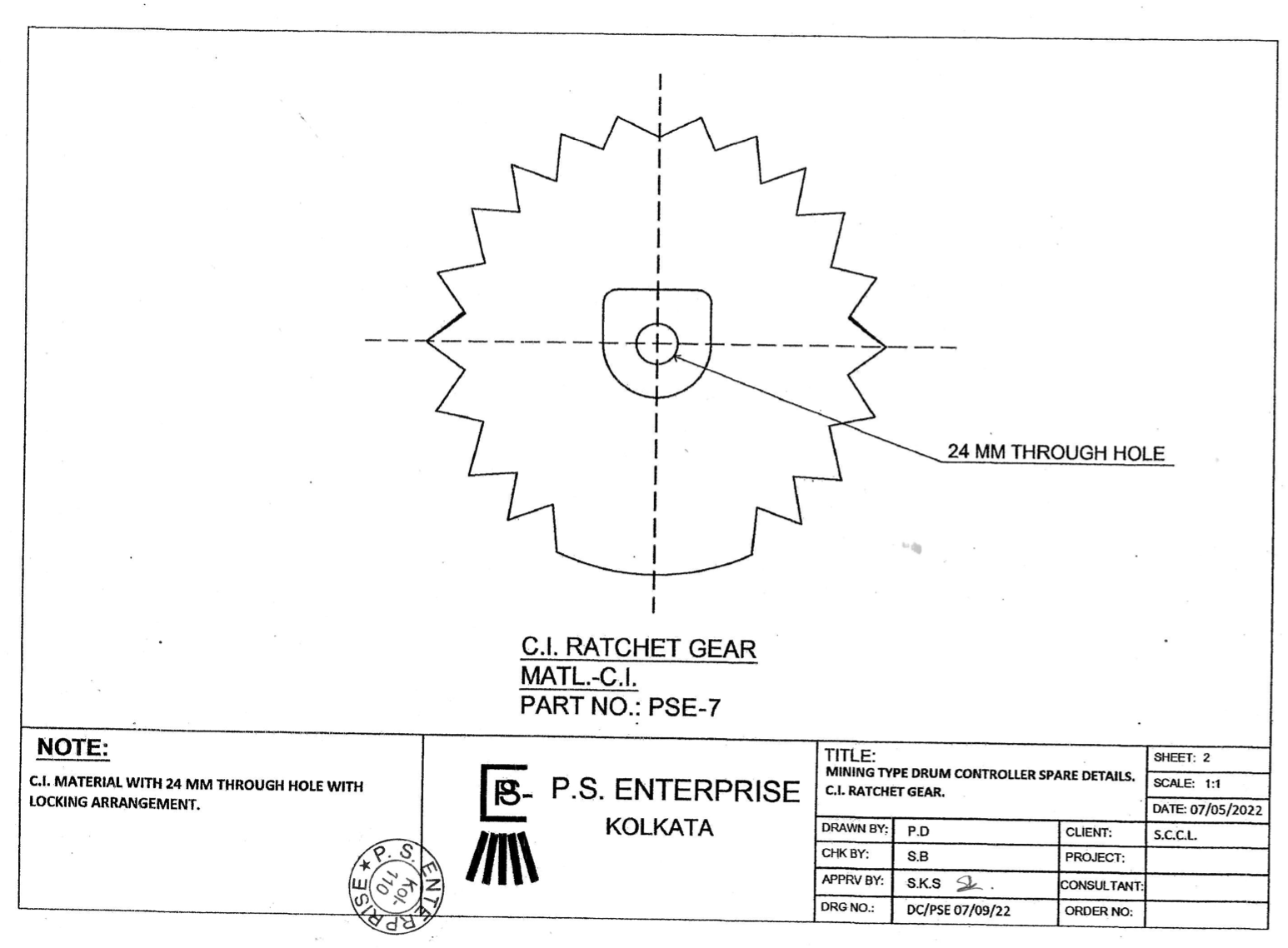

| 83. | PSE 7 |
C.I. WRETCHED GEAR WITH 24mm THROUGH HOLE. |
DC/PSE07/09/22 |
 |
| 84. | PSE 8 | SPRING CATCHER WITH MS ROLLER. | DC/PSE8/06/22 |
 |
| 85. | PSE 9 | DRUM CONTROLLER HANDLE WITH BACKELITE DEAD MAN KNOB. | DC/PSE09/08/22 |
 |
| 86. | PSE 10 | DMC EPOXY FLASH GUARD WITH PLATE. | DC/PSE10/11/22 |
 |
| 87. | PSE 11 | AUXILIARY FINGER CONTACT SET WITH DMC HOLDER FOR OPI & BLINKER. | DC/PSE11/10/22 |
 |
| 88. | PSE 23 | COMPLETE SET OF OPI & BLINKER. | DC/PSE23/12/22 |
 |

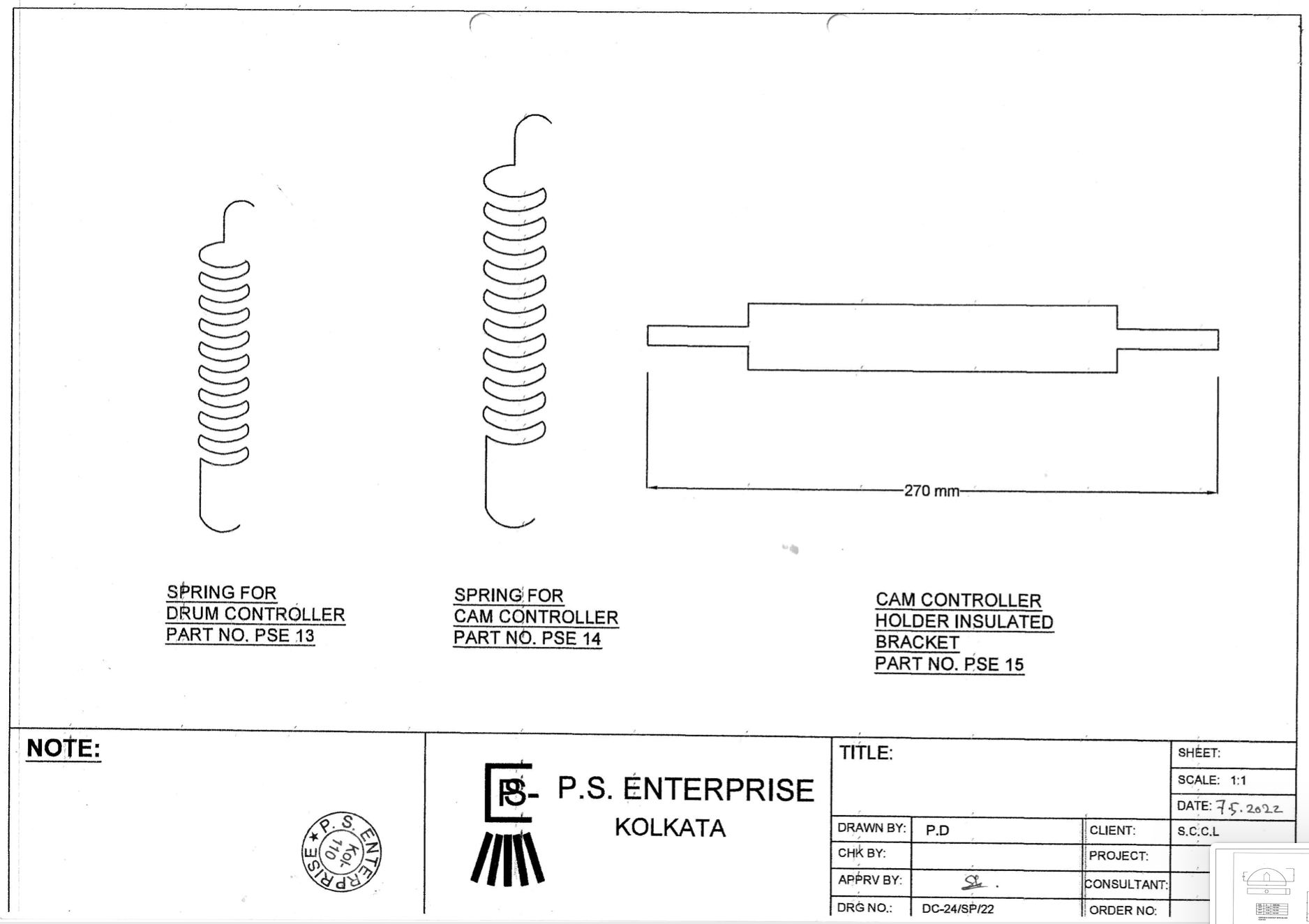

| 89. | PS 13 | MAIN SPRING. | DC-24/SP/22 |
 |
| 90. | PSE 5 |
BRASS FINGER CONTACT WITH 16mm SILVER COATED ‘D’ CONTACT FOR 40 HP DC |
DC/PSE5/02/22 |
 |

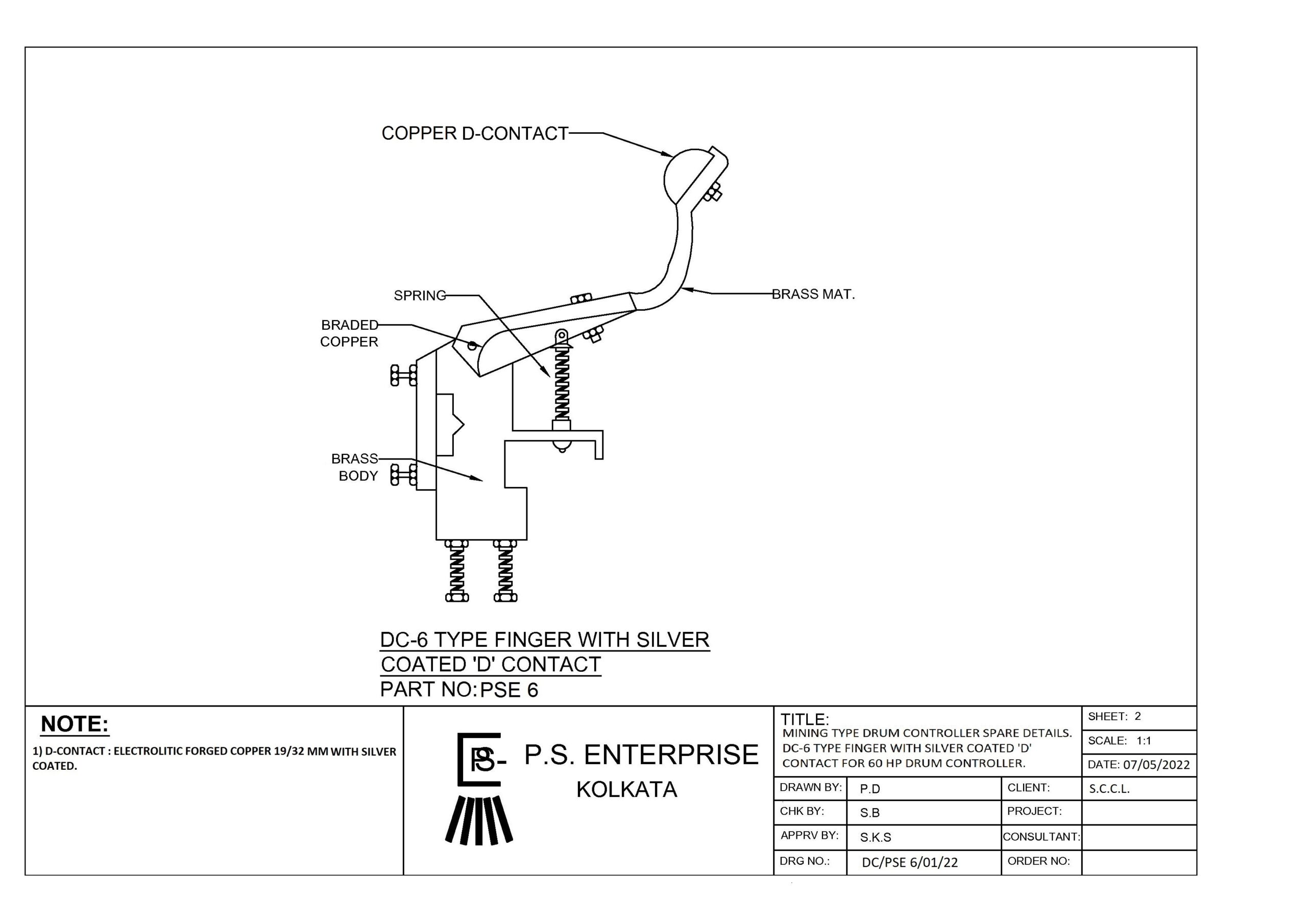

| 91. | PSE 6 |
BRASS FINGER CONTACT WITH 19mm SILVER COATED ‘D’ CONTACT FOR 60 HP DC |
DC/PSE6/02/22 |
|
| 92. | PSE1540 | 16 MM COPPER ‘D’ CONTACT | DC/PSE19/13/22 |
 |
| 93. | PSE1560 | 19MM COPPER ‘D’ CONTACT | DC/PSE19/13/22 |
|
| 94. | PSE1587 | 25MM COPPER ‘D’ CONTACT | DC/PSE19/13/22 |
|
