Starting and controlling the speed of AC-DC Motors in colliery haulage, Steel Mill, specially Winders and Conveyors. Controlling the speed of the AC Slipring Motor in EOT Crane for all motions like Hoist, Travel, Luffing, and Slewing, etc. Master Controller used in Electric cranes or material handling equipment in conjunction with Resistors.

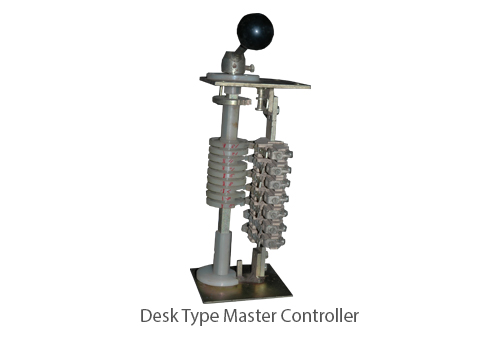

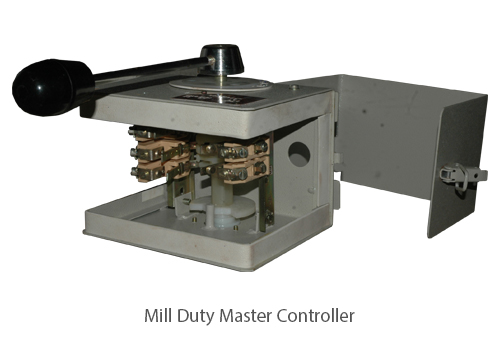

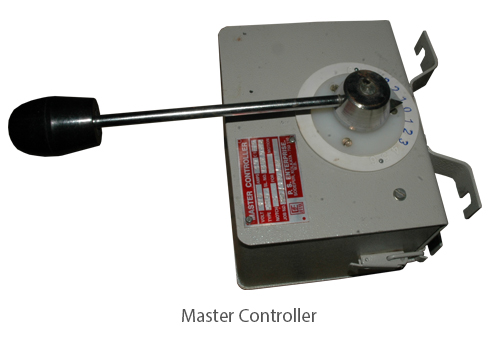

These can be provided with up to Seven notches(7-0-7) in each of the forward and reverse directions. All parts are easily accessible and replaceable. We manufacture two types of Master Controllers, crank handle, and ‘joystick’ type handle. Master Controller of type-J with joystick handle, Deadman’s mechanism is also available. The Control system consists of Contact Block and Cam Assembly is housed in a fabricated sheet steel enclosure. The operator’s handle is directly fitted on the shaft. Starwheel with an unbreakable knob for ease of operation.

Advantages:

• The Driving Shaft is mounted on self–lubricating bushes.
• Mounting: Wall or Surface Mounting.
• Mechanical Enclosure: 600 to 800 Switching per hour.
• Pressure or Contract bridge: 0.25kg + 0.025 kg.
• Cam and Contact block made of the phenolic fibrous molding material.
• Long life & Trouble-free operation ensured.

Testing:

• Each Master Controller is tested at 2 kV for 1 minute.
• An impulse test at 3 kV also conducted.

Spares can be supplied from stock within two to three weeks of receipt of the order.

When Ordering your PSE Master Controller please mention

• Number of Steps
• Contracts sequence Chart indicating Opening/Closing
• Type of Master Controller (Crank Handle / Joystick Handle
